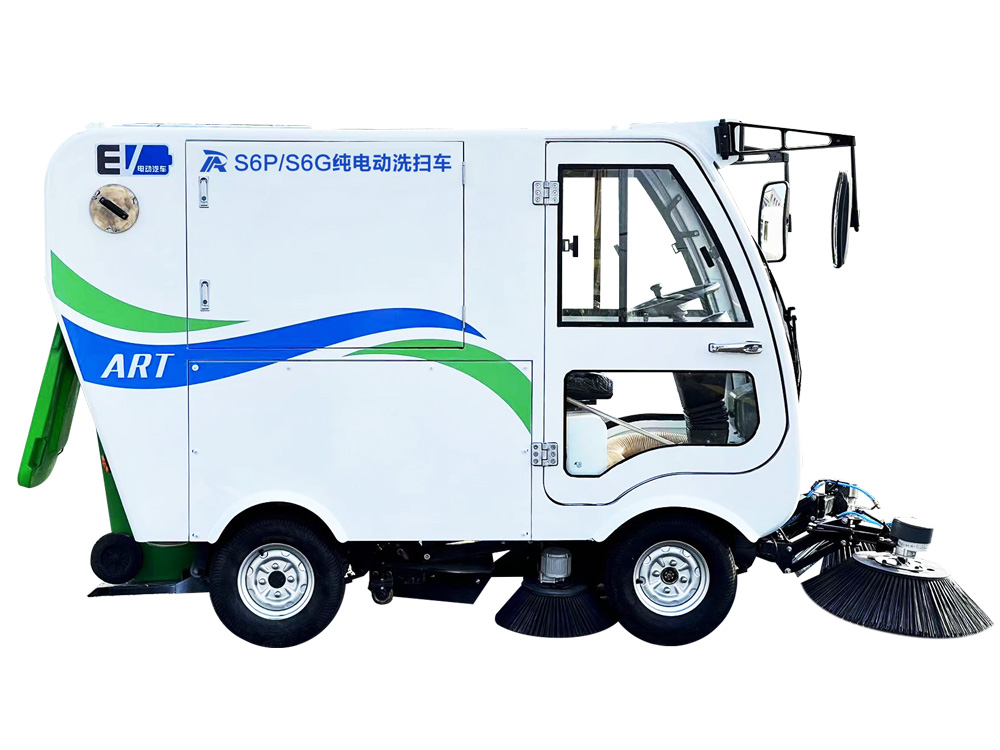

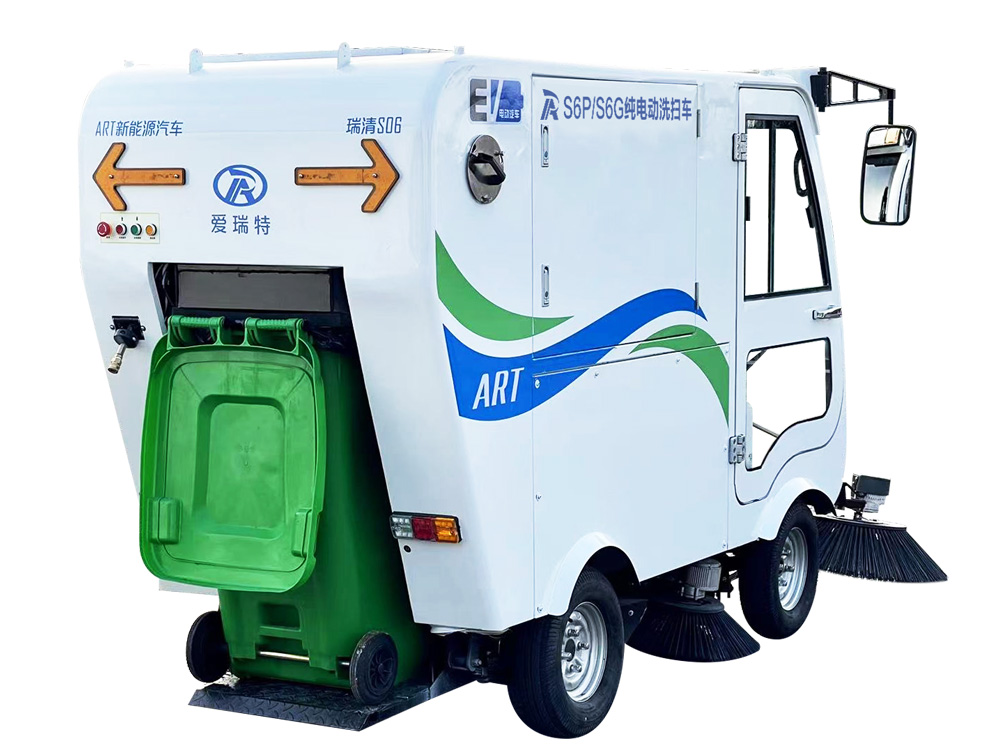

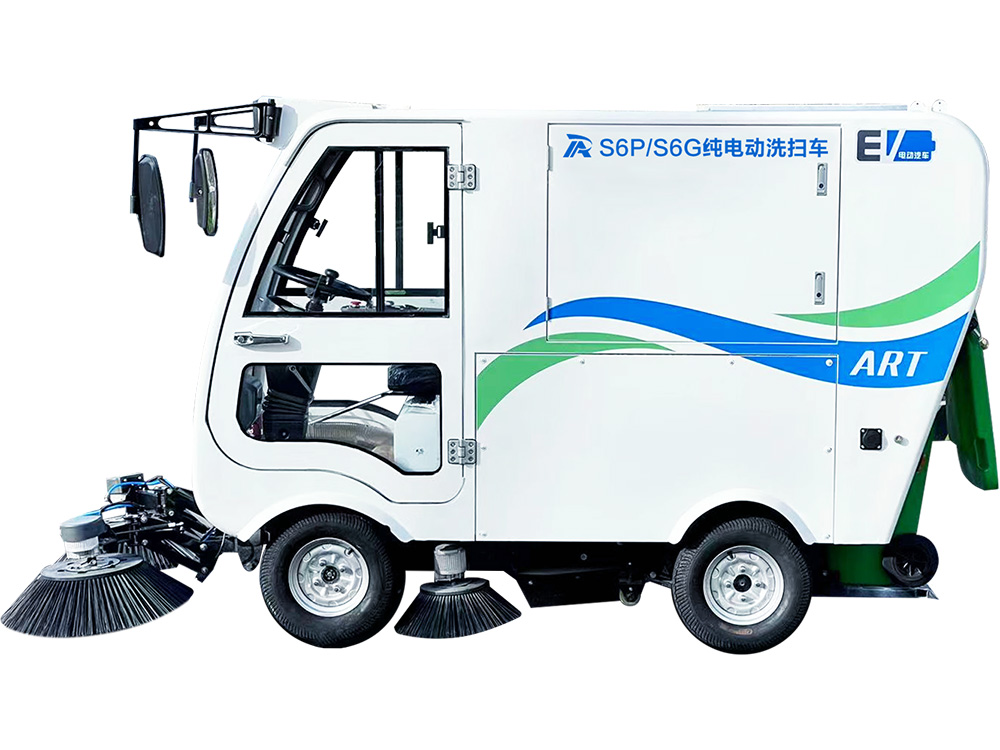

Ruiqing s6p/s6g pure electric cleaning and sweeping vehicle is small, flexible and has strong trafficability. It is mainly used for the cleaning of non motorized lanes, auxiliary roads, sidewalks, back streets and alleys. It adopts the pure suction method and integrates cleaning, spraying, high-pressure washing and hand-held suction. It can quickly clean fallen leaves, stones, sand dust and white garbage. It is equipped with 240L standard garbage cans.
★ chassis: the overall riveted chassis of the vertical and horizontal beams of the frame is made of automobile girder steel, with high strength, strong bearing capacity, electrophoretic rust prevention treatment and corrosion resistance;
★ body: fully enclosed cab, fully transparent glass on three sides, high-quality high-strength metal body, good visibility and beautiful appearance.
★ drive: electric differential rear axle drive, stepless speed change.
★ battery: two lithium iron phosphate batteries, 72v200ah and 72v300ah, are available, with a 3-year warranty and free maintenance in the fourth year.
★ cleaning system: pure suction type, which adopts the layout of "four side brush + central 625mm suction cup", and is equipped with a detachable hand-held pipette with a length of 4m, with high suction efficiency and fast operation speed.

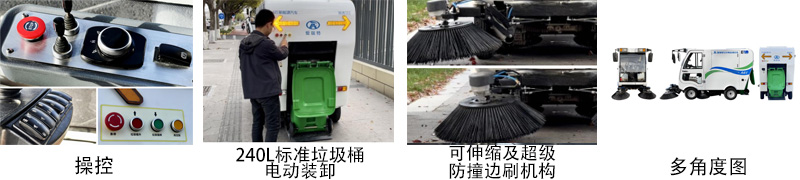

★ side brush system: the front side brush can move independently electrically in four directions (up and down + left and right telescoping) to enhance vehicle trafficability; The two-way super anti-collision design can effectively protect the brush motor and reduce the damage of the front brush mechanism.
1 | ★Maximum sweeping width | mm | 2100 |
2 | Voltage / rated power | v/kw | 72/5 |
3 | Driving power | kw | 3.5 |
4 | Fan power | kw | 3.5 |
5 | wheelbase | mm | 1400 |
6 | Side brush diameter | mm | 650×2 + 500×2 |
7 | ★Continuous working time | h | ≥6 |
8 | Maximum travel speed | km/h | 30 |
9 | ★Water tank capacity | L | 300 |
10 | ★dustbin | / | 240LStandard trash can |
11 | Minimum turning diameter | m | ≤5 |
12 | Body dimensions | mm | 2660×1100×1850 |
13 | curb weight | kg | 1160 |
14 | Optional configuration | / | EPS electric direction assist, rear spray bar, fog gun, high-level pipe winder (can not exist at the same time with low-level pipe winder) |
